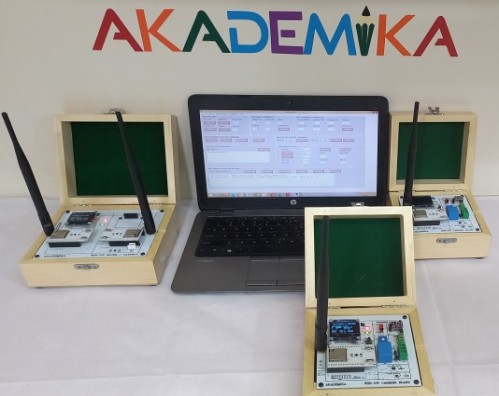

The WL-WSN Trainer is a portable Wireless Sensor Network testbed using ESP32 modules for real-time study of Wi-Fi communication, routing, and sensor-based applications. It supports up to multi-nodes with self-organizing multi-hop networks and requires no frequent reprogramming. A user-friendly GUI enables easy setup, monitoring, and control for practical WSN experiments.The trainer includes support for Wi-Fi based communication, sensor interfacing, and routing experiments, enabling realistic hands-on WSN learning and application testing.
Real-time wireless communication testbed for indoor & outdoor experiments.
GUI-based configuration of nodes, routing, bandwidth, throughput, and network parameters.
Supports multi-hop networking, packet analysis, bandwidth analysis & signal-strength studies.
Ideal for learning wireless communication, IEEE 802.11 fundamentals, and IoT sensor applications.
It includes on-board peripherals such as Relay, PWM LED, ADC (1 k pot), DAC output, and BME280 (Temp/Humidity/Pressure).
It supports Wi-Fi, PAN communication, star/multi-hop topologies, and up to 5-hop routing.
Master and multiple NPD nodes forming a self-organizing & self-healing wireless sensor network.
ESP32-WROOM–based Wi-Fi (IEEE 802.11 b/g/n) wireless trainer with 2.4–2.5 GHz operation.
The trainer kit is based on ESP32-WROOM module, which is a powerful, generic Wi-Fi + BT +BLE MCU module and compatible with IEEE 802.11b/g/n networks, with a Frequency range 2.4 GHz ~ 2.5 GHz and a data rate of up to 150 Mbps.
The trainer kit is based on following components:
ESP32-WROOM Wi-Fi module:
Frequency range 2.4 GHz ~ 2.5 GHz
Compatible with IEEE 802.11b/g/n networks
Data rate: up to 150 Mbps
20 dBm Output Power at the antenna
Capacitive-sensing GPIOs
Supply Voltage: 2.7~3.6 VDC
Two 12-bit SAR ADCs, two 8-bit DACs.On-Board Peripheral:
RELAY:
It is an actuator, 5V Good SKYSPDT Mechanical Relay
Operate Time: 10 mSec. Max.PWM: We should use LED Indication.
DAC: The user can vary the potentiometer value and check the respective voltage at DAC connector
DAC connector.ADC:
Potentiometer: Potentiometer value 1K.
For generation of an analogsignals.BMEModule: Temperature: –40 to 85°C.
Humidity: 0 to 100 %·
Pressure: 300 to 1100 hPa
Altitude: 0 to 30,000 ft.
I2C and SPI Interface.
3.3V operation.Select dio: The user can configure the external DIO on the sensor interface connector.
PROVIDED ACCESSORIES
Master &Gateway Trainer Kit
Node’s
USB cable
Helix Antenna
Jumper wire Male to Female
Battery Charger
Router.
Study network formation, node joining, topology creation, and basic communication flow.
Measure PDR and observe routingoverhead under different network loads.
Record LQI at various distances and determine the correlation between range and signal quality.
Analyze how protocol overhead and control packets affect usable bandwidth.
Measure end-to-end delay as hop count increases in multi-hop networks.
Study throughput variations by changing the payload size in data transmissions.
To study the effect of settling time on DAC.
To study the working of DAC for various digital data pattern.
To study the conversion by using R/2R Ladder network and measure its resolution.
